A cowhide air delivery system is a device for conveying cowhide to temporary cowhide storage. It is a large-scale cattle slaughtering equipment with a maximum distance of 100 meters.
In the slaughtering workshop, after the slaughtered cows are peeled by the hydraulic peeling machine, the cowhide is stacked in the slaughtering workshop. Since there are many pollution sources on the cowhide, such as dust, cow dung, and cow hair, it will not only affect the environment of the slaughtering workshop, but also The spread of pollution sources will seriously affect the quality of meat, and even make the meat unsaleable.
The cowhide air delivery system in the slaughtering equipment can effectively collect and process cowhide and prevent the spread of contamination sources attached to the cowhide. The cowhide wind is sent to the cowhide temporary storage room through this device.
The cowhide air delivery system in the slaughterhouse is the cowhide bucket placed under the hydraulic peeling machine. The cowhide bucket is connected to the cowhide collection box through a negative pressure air duct. The bottom of the cowhide bucket is equipped with an opening and closing plate, which is connected to the hydraulic piston rod. The piston at the end is fixed, the bottom of the cowhide bucket and the end surface of the negative pressure air duct in contact with the opening and closing insert plate are respectively provided with sealing strips, and the negative pressure air duct is provided with an exhaust fan.

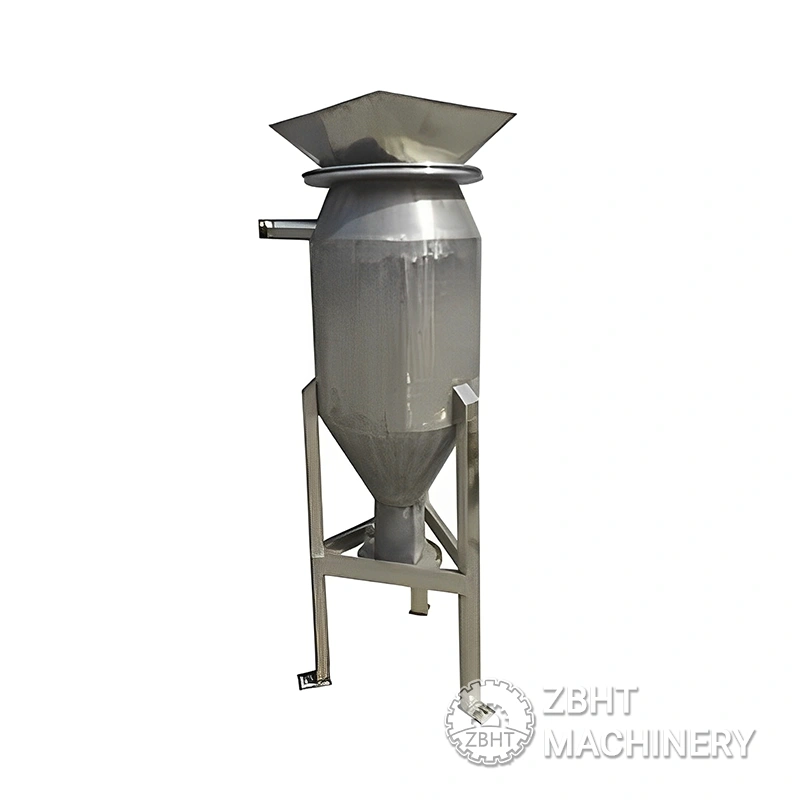

The cowhide used is peeled and falls into the air supply tank through the chute, the pneumatic valve is closed, the compressed air is filled, and the cowhide is transported to the cowhide temporary storage roomthrough the pipeline. After each conveying, the air supply tank is cleaned and the valve is opened again.
Stainless steel cowhide chutes; stainless steel air supply cylinders; pneumatic valves; stainless steel cyclones; stainless steel collection tanks; required valves, controls, mounting brackets, and fixtures.
Technical data:
-Stainless steel collection tank body, plate thickness 4mm, material 304
-Stainless steel shut-off valves, pipes, cyclones, control systems, etc. with cylinders, pipes, suspension brackets, and fasteners that are hot-dip galvanized.
-Stainless steel collection tank is equipped with a pneumatically operated shut-off valve and switch box.
-Air consumption: Determined according to the length of the pipeline and the production capacity.
-Automatic linkage between cowhide air delivery system and peeling machine.
-The end of the air supply duct is installed below the secondary steel beam, and a 3m-long splash-proof transparent nylon curtain is installed.
-The steel beam and bracket are made of hot-dip galvanized material.
The cowhide air delivery system in the slaughtering equipment can effectively collect and process cowhide and prevent the spread of contamination sources attached to the cowhide. And save labor, clean and hygienic.
No. We are the original manufacturer of animal slaughtering lines, meat processing equipment, deboning and cutting system, spare parts, etc.
We have 3 slaughtering lines in our factory, including 1 cattle slaughtering line, 1 sheep slaughtering line and 1 pig slaughtering line. We also have deboning and cutting systems, hygiene tools, etc in our factory. You can also see the different design in our sample line room.
Normally, we will need 3 weeks for single machine, and 2 months for a whole production line. For confirmation, we will need to confirm with production director first. However, we will make your production lines as soon as possible.
We will need 30% of total contract value in advance by T/T as deposit. And the balance will be paid before your products are shipped out of factory.
We have our own inspection team in factory. They will inspect the raw material, semi-finished product, finished product following our drawing and standard in quotation sheet. You will get what you see during factory visit and you can check your products during the production anytime during the production.
Yes. We will send 1 engineer for overseas project guiding installation. As a buyer, you will need to pay for the round way air tickets, food and accommodation, local transportation in your project location, and also pay the allowance of the technician during installation.
