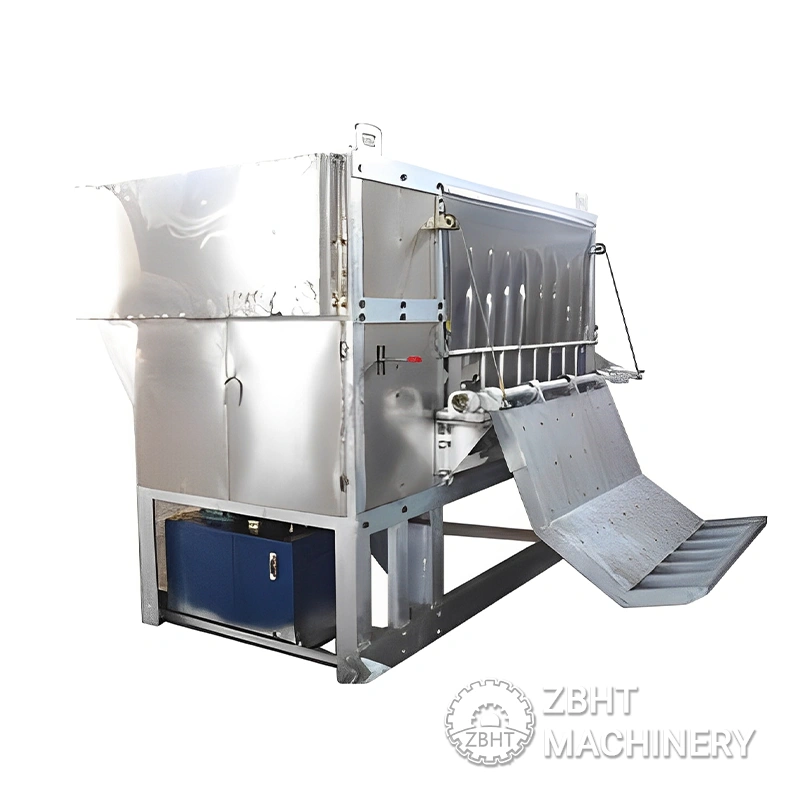

A hog hair removal machine(200 types) is designed for hogs under 230 kg. For hogs with a relatively small weight, two hogs can be removed at the same time, which greatly improves the production capacity of the slaughtering line.
| Production capacity | 120—180 heads/hour |
| Maximum working load (1-2 heads each time) | 230 kg |
| The maximum length of the planing space is 1.8 meters | |
| Planing time is about 40 seconds | |
| Dimensions (L*W*H) | 2826mm*2650mm*2296mm |
| Weight | 3.1 tons |
1. The soft planer shaft is raised, and the hog body planed in the machine is pulled out of the machine by the hand planer on the large drum and slid into the scalding tank. At this time, the soft planer shaft is lowered and restored.
2. The rake picks up and lifts the hog body from the scalding tank, and at the same time, the gate of the hog is lowered, so that the hog body can slide into the machine. When the rake is lowered, the rate rises and blocks the hog body in the machine. Shave the hair inside so that it will not roll back into the scalding pool. After the action is completed, the above actions will be repeated.
3. Due to the proper arrangement of the shaving drum, the hog body rolls freely in the machine. Under the pressure of the hog body’s own weight, the shavings and the hog body roll and rub, so as to achieve the purpose of dehairing.
4. The hog body must be scalded before entering the hog hair removal machine, and scalding is an important condition for hair removal.
Note: The temperature of hot water for scalding hogs depends on the climate and the variety of hogs. Generally, the water temperature should be controlled at 60~65℃.
5. The machine is equipped with a water spray pipe. It is best to spray warm water during the hair planning process to wash the residual hair and blood on the hog’s body.
No. We are the original manufacturer of animal slaughtering lines, meat processing equipment, deboning and cutting system, spare parts, etc.
We have 3 slaughtering lines in our factory, including 1 cattle slaughtering line, 1 sheep slaughtering line and 1 pig slaughtering line. We also have deboning and cutting systems, hygiene tools, etc in our factory. You can also see the different design in our sample line room.
Normally, we will need 3 weeks for single machine, and 2 months for a whole production line. For confirmation, we will need to confirm with production director first. However, we will make your production lines as soon as possible.
We will need 30% of total contract value in advance by T/T as deposit. And the balance will be paid before your products are shipped out of factory.
We have our own inspection team in factory. They will inspect the raw material, semi-finished product, finished product following our drawing and standard in quotation sheet. You will get what you see during factory visit and you can check your products during the production anytime during the production.
Yes. We will send 1 engineer for overseas project guiding installation. As a buyer, you will need to pay for the round way air tickets, food and accommodation, local transportation in your project location, and also pay the allowance of the technician during installation.
