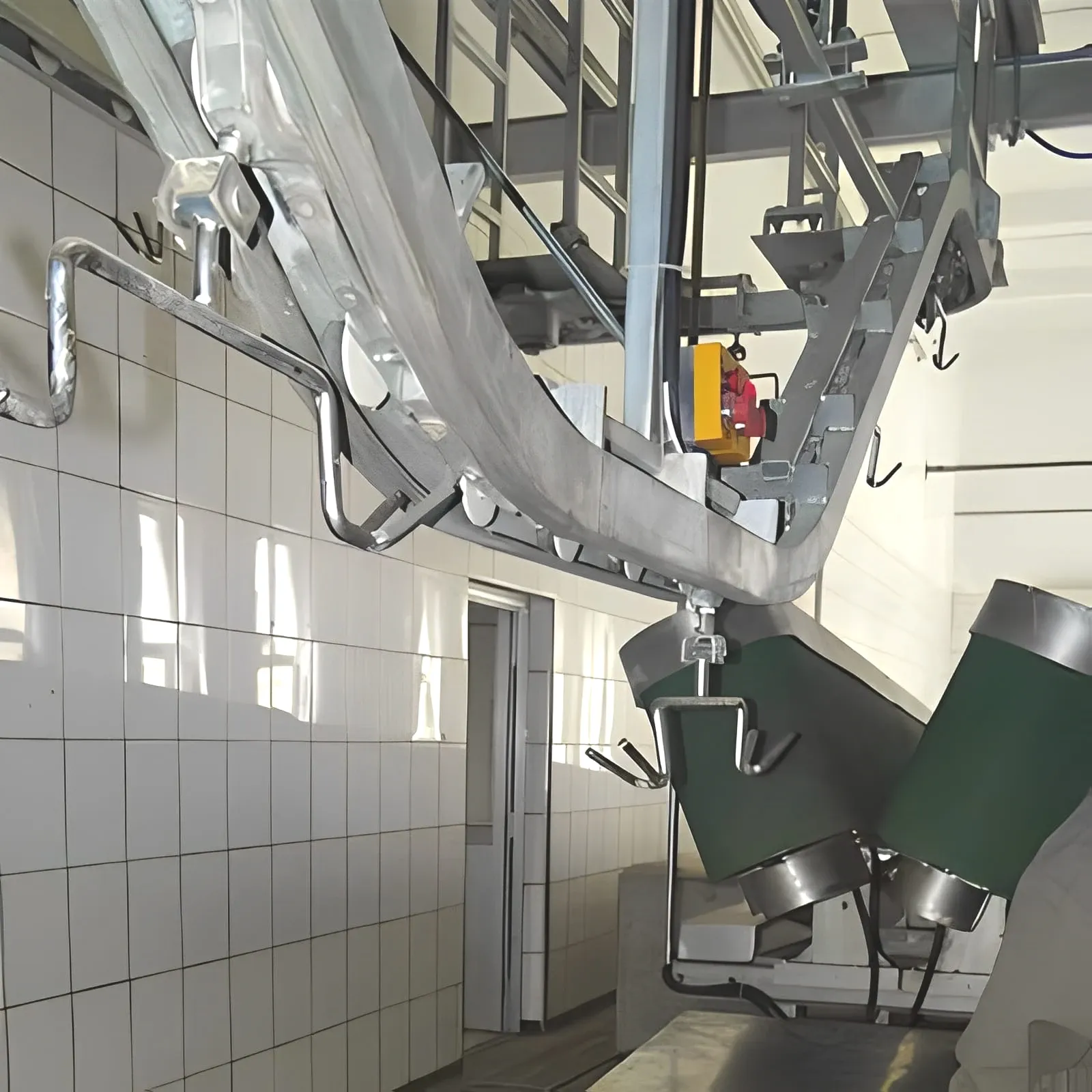

The V-shaped conveyor is used to convey live sheep in the sheep slaughter line. The conveyor connects the sheep-driving channel with the receiving platform and the sheep can be hung directly on the bloodletting line.
The four hooves of the sheep are used for suspended transportation and the brain is instantly stunned during the transportation. The width of the inlet and outlet of the machine is adjustable, and the conveyor belt is a nylon belt, which is convenient for washing and maintenance. The motor is a variable frequency motor, which can adjust the conveyor speed according to the shift output and proficiency, which is suitable for various slaughter volumes.
| Dimensions | 3890×1350×1265 (length×width×height) |
| Power | 2×1.1kw, integrated motor, and reducer.Voltage: 380V/ 3P/50HZ |
| The frame is made of 80×80 | |
| stainless steel square pipe and stainless steel 10# channel steel The conveying part of the two sets of lamb tripe is made of 4mm thick nylon belt and has a V-shaped structure. | |
| The width of the included angle is mechanically adjustable | |
| Stainless steel transmission drum ∮360×500. | |
| Capacity | 100-800 sheep/goat per hour |

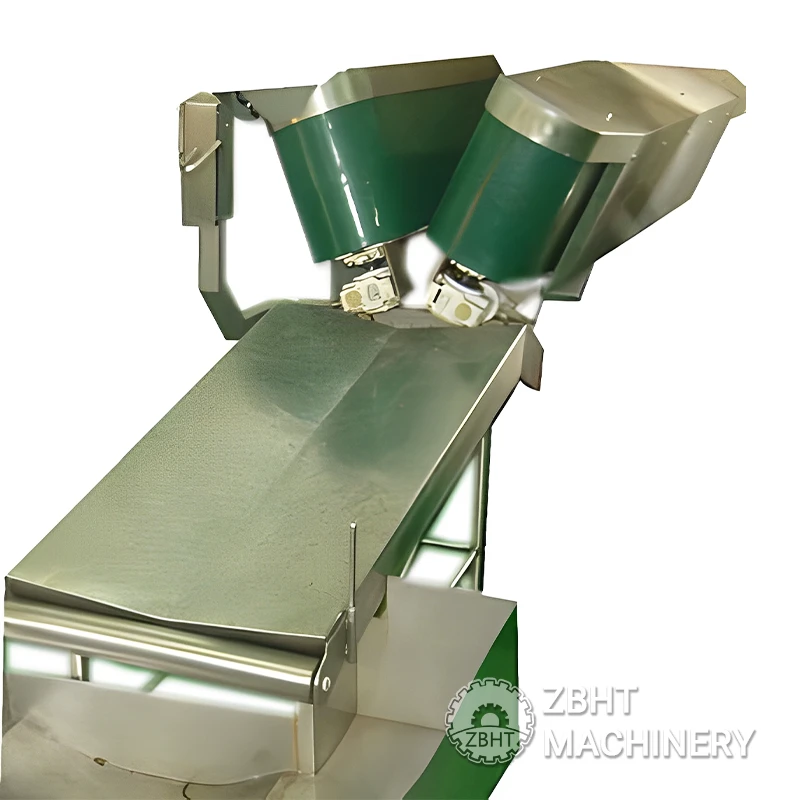

The equipment is mainly composed of an active roller, belt, passive roller, tensioning mechanism, and frame.
After the sheep enter the V-shaped conveyor through the driveway
The V-shaped groove formed by the two belts clamps the front shoulders, chest and abdomen and back buttocks of the sheep, so that the limbs are suspended, and the sheep moves forward along the two V-shaped belts. When transported to the exit, the operator stuns the sheep with a hand-held hemp appliance and the stunned sheep fall smoothly onto the slaughter platform through the machine.
When using this sheep slaughter equipment, adjust the distance between the two V-belts according to the size of the live sheep, so that when the sheep enters, it just clamps the front shoulders, thoracic abdomen, and back buttocks of the sheep, so that the four hooves of the sheep are suspended and transported to the exit smoothly.
In addition, adjust the speed of the V-shaped conveyor to match the conveying speed with the output of the production line.
No. We are the original manufacturer of animal slaughtering lines, meat processing equipment, deboning and cutting system, spare parts, etc.
We have 3 slaughtering lines in our factory, including 1 cattle slaughtering line, 1 sheep slaughtering line and 1 pig slaughtering line. We also have deboning and cutting systems, hygiene tools, etc in our factory. You can also see the different design in our sample line room.
Normally, we will need 3 weeks for single machine, and 2 months for a whole production line. For confirmation, we will need to confirm with production director first. However, we will make your production lines as soon as possible.
We will need 30% of total contract value in advance by T/T as deposit. And the balance will be paid before your products are shipped out of factory.
We have our own inspection team in factory. They will inspect the raw material, semi-finished product, finished product following our drawing and standard in quotation sheet. You will get what you see during factory visit and you can check your products during the production anytime during the production.
Yes. We will send 1 engineer for overseas project guiding installation. As a buyer, you will need to pay for the round way air tickets, food and accommodation, local transportation in your project location, and also pay the allowance of the technician during installation.
