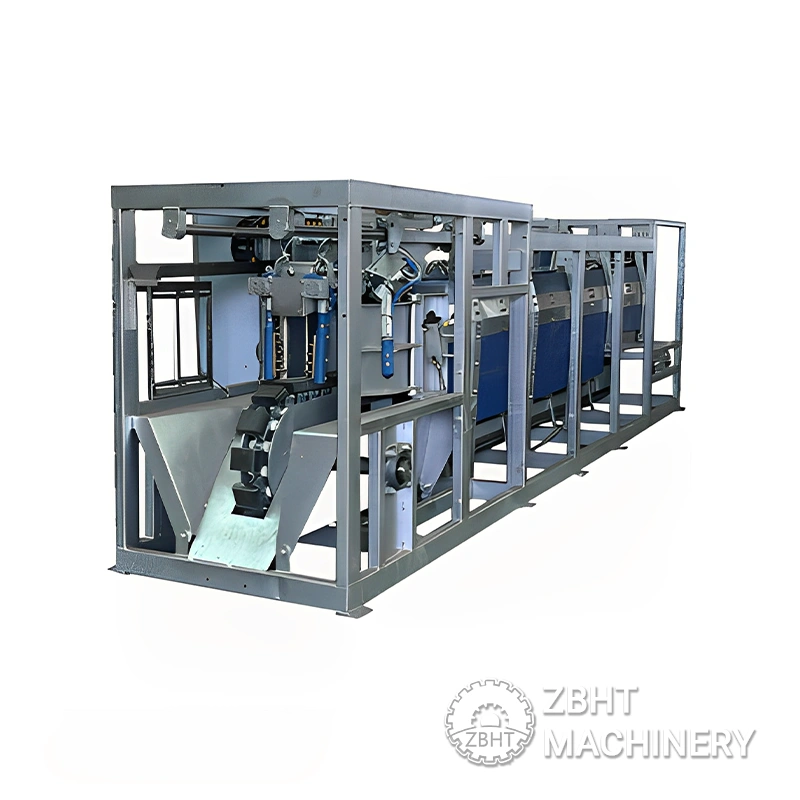

Belly support type three-point stunning conveying machine is an upgrade on the basis of belly support type stunning conveyor, In the original basis, added a cardiac stunning head, It makes the pig bleed more fully, improves the quality of meat and reduces the appearance of PSE meat.
| Name | Pig Automatic Stunning Machine Three-Point Stunning Conveyor Equipment For Hog Slaughterhouse |
| Material | Hot galvanized and stainless steel. |
| Suit for | Medium and large pig pork hog slaughterhouse |
| Voltage | 380v 3p 50hz (Customized) |
| Style | Three-Point Stunning Conveyor Machine |
| Conveying speed | 7 m/min -28 m/min (adjustable) |
| Capacity | 300 head/hour |
| Product Dimensions | 6700*1100*1610mm(L*W*H) |
| Driving Method | Motor driving |
Belly support type three-point stunning conveying machine is an upgrade on the basis of belly support type stunning conveyor, In the original basis, added a cardiac stunning head, It makes the pig bleed more fully, improves the quality of meat and reduces the appearance of PSE meat.
(1)Structure and feature
Consisting of a driving device, heart stunning electrode, brain stunning electrode, stunning
cart, Photoelectric monitoring, Saddle conveyor chain, body, tension device.
(2)Characteristic
Four trotters in the air, can’t flounder, Convenient to stunning accurately. The head of the electrode is designed in a quincuncial shape with, High penetration rate. It is suitable for different breeds and weights pig’s stunning, The escape rate is less than 1%.
(3)Operation points
The Pig enters the stunning machine, Photoelectric system positioning, Three electrodes positioned the ears below and the heart, to stunning with1-2s.
1. Pig-body saddle delivery, abdominal force, four legs suspended, avoid panic caused by factors such as whipping before stunning, improves the quality of the meat;
2. The automatic photoelectric stunning clamping mechanism carries out multi-point high frequency and low pressure stunning on the pig head and heart.
3. Because of the breed of pig and the difference of season, some pig body is easy to appear to stun to die phenomenon, By giving an electric stunning to the heart, the bleeding was made more fully.
4. The full automatic photoelectric stunning clamping mechanism synchronizes with the saddle conveyance, it is avoided the phenomenon of a hind leg broken or congestion after the pig body comes out from the stunning machine.
The three basic types of stunning methods which are classified as being humane (i.e., painless) in the United States, Europe, and other foreign countries are captive bolt (penetrating and nonpenetrating), electrical, and C02 (carbon dioxide) gas anesthesia.
Generally, electric stunning is a more convenient method of stunning. Mobile electric stunning （electric stunner for pigs）is generally suitable for small pig abattoir, large and medium-sized pig slaughterhouses choose 3-points pig electric stunning conveyor machine.
No. We are the original manufacturer of animal slaughtering lines, meat processing equipment, deboning and cutting system, spare parts, etc.
We have 3 slaughtering lines in our factory, including 1 cattle slaughtering line, 1 sheep slaughtering line and 1 pig slaughtering line. We also have deboning and cutting systems, hygiene tools, etc in our factory. You can also see the different design in our sample line room.
Normally, we will need 3 weeks for single machine, and 2 months for a whole production line. For confirmation, we will need to confirm with production director first. However, we will make your production lines as soon as possible.
We will need 30% of total contract value in advance by T/T as deposit. And the balance will be paid before your products are shipped out of factory.
We have our own inspection team in factory. They will inspect the raw material, semi-finished product, finished product following our drawing and standard in quotation sheet. You will get what you see during factory visit and you can check your products during the production anytime during the production.
Yes. We will send 1 engineer for overseas project guiding installation. As a buyer, you will need to pay for the round way air tickets, food and accommodation, local transportation in your project location, and also pay the allowance of the technician during installation.
