Qingdao ZBHT Machinery Co., Ltd. is a professional manufacturer of pig, cattle, and sheep slaughtering equipment with CE and ISO certifications. Our Sheep V-type conveyor is a key piece of sheep slaughtering equipment widely used in sheep slaughterhouse facilities as part of the complete sheep slaughter line.
Product Overview

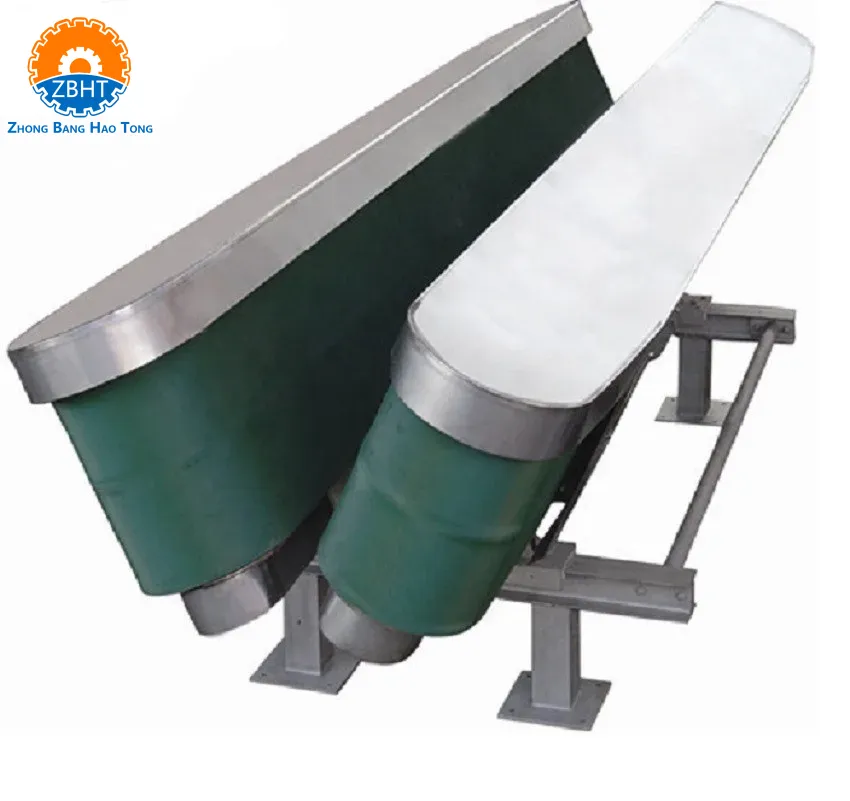

The Sheep V-type conveyor is a live sheep restraining and conveying device used in sheep slaughterhouse operations. It is primarily applied before the stunning process on the sheep slaughter line, safely conveying and securing live sheep (sheep or goats) to improve both operational efficiency and animal welfare.
Working Principle
The machine uses two conveyor belts arranged at a certain angle to form a "V" shape. The belts clamp the sheep's body and lift it off the ground, keeping all four hooves suspended. This design helps the animal relax and prevents kicking or backing up. Operators can control the forward movement, belt speed, or stop the conveyor via foot pedals or manual controls.
Key Features
V-Shape Nylon Belts
The conveying section consists of two sets of nylon belts with a thickness of 4mm, arranged in a V-shaped structure. The nylon material is easy to flush and maintain, making it ideal for sheep slaughterhouse sanitation requirements.
Adjustable Width
The V-angle and inlet/outlet width are mechanically adjustable, allowing the sheep V-type conveyor to accommodate sheep of different body sizes. This flexibility makes it suitable for various sheep slaughter line setups.
Drive Roller
Equipped with a drive roller of ∮360×500, ensuring stable and reliable conveying performance.
Speed Control
The conveyor is powered by a variable frequency motor with a complete controller. The speed can be adjusted according to daily slaughter capacity and operator proficiency, adapting to different production volumes in any sheep slaughterhouse.
Overall dimensions: 3890 × 1350 × 1265 (length × width × height), installed power: 2 × 1.1kw, motor and reducer integrated. The frame is made of □80×80×4 stainless steel square tubes and stainless steel 10# channel steel.
Operational Advantages
Seamless Connection
The front end of the conveyor connects to a flat receiving platform, allowing live sheep to be directly transferred and hung on the bleeding line. This design simplifies operation and significantly reduces labor intensity for workers.
Easy Cleaning and Maintenance
The nylon conveyor belts are easy to flush and clean, which is essential for maintaining hygiene standards in a sheep slaughterhouse. The simple structure also facilitates quick repairs and parts replacement.
Adjustable Speed for Different Outputs
With the variable frequency motor, the conveying speed can be fine-tuned based on your daily production targets and worker skill levels. Whether you process a small or large number of sheep, this sheep slaughtering equipment adapts to your needs.
Applications in Sheep Slaughter Line
The Sheep V-type conveyor serves as a critical supporting device in the sheep slaughter line. It is specifically designed for:
Conveying live sheep from the holding area to the stunning station
Restraining sheep during the stunning process
Connecting with bleeding lines and subsequent processing stations
As part of a complete sheep slaughter line, this equipment ensures a smooth and continuous workflow, improving overall productivity in your sheep slaughterhouse.
