In the process of slaughtering and processing cattle and pigs, splitting the carcasses is an important step. Qingdao ZBHT Machinery Co., Ltd. mainly produces slaughtering equipment for cattle, pigs, and sheep. Below, the uses, structural features, operation points, and precautions of the band-type splitting saw and the reciprocating splitting saw are introduced respectively, to facilitate the selection of equipment according to the requirements for splitting the carcasses of cattle and pigs.

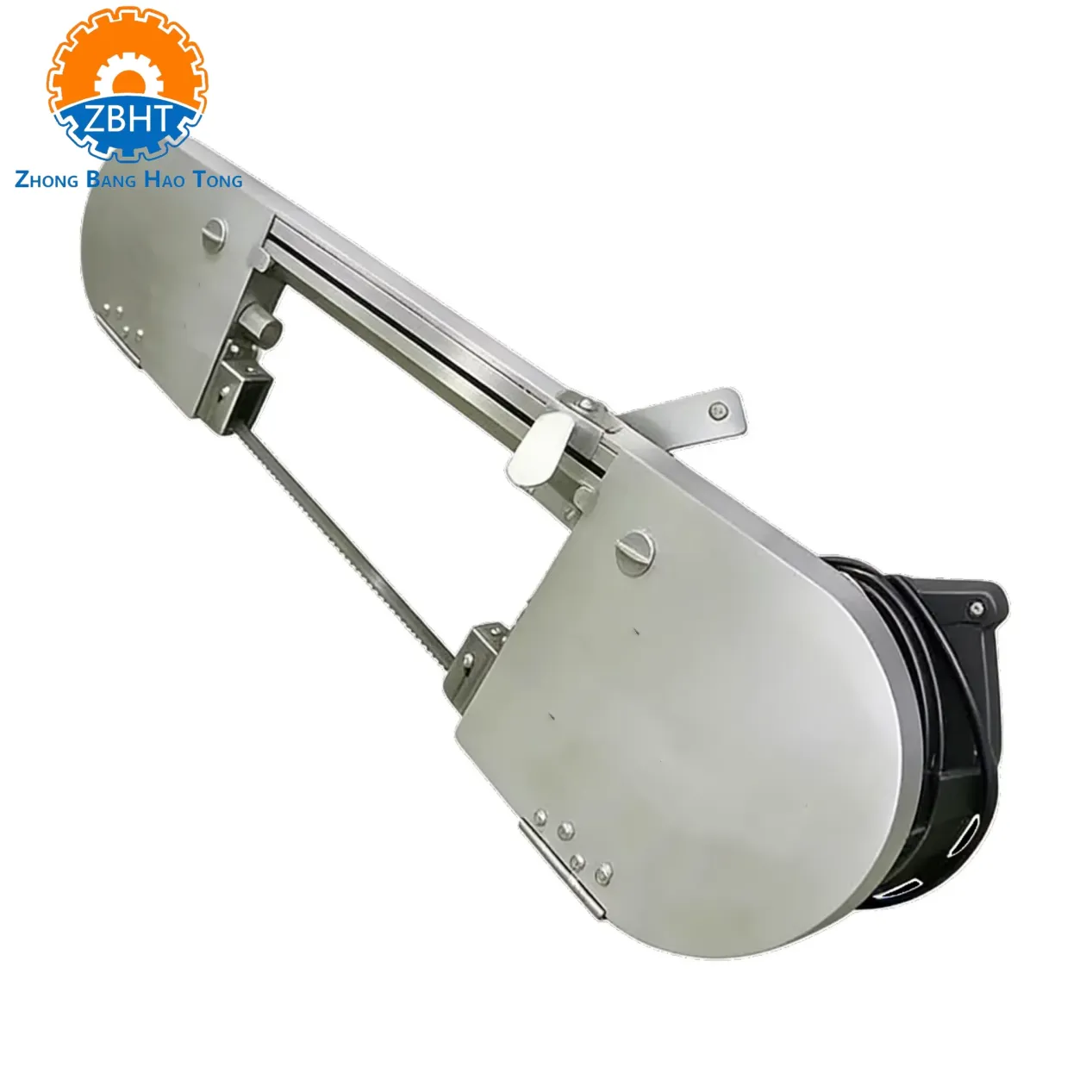

Band Saw for Splitting in Half (for Cattle/Pigs)
1. Equipment Usage
The band saw for splitting in half is a professional equipment that uses a closed band saw as the working component to complete the splitting of pig carcasses. There are two types of band saws: the one for cattle and the one for pigs. The cattle band saw is used for splitting cattle carcasses, while the pig band saw is used for splitting pig carcasses.
2. Main Structure and Features
The band saw for splitting in half consists of a frame, saw blade, lifting ring, water spray device, and motor. Its features include:
Waterproof touch switch, fully sealed design.
Water spray device, which continuously cleans and cools the saw blade during operation.
Used in conjunction with a balance device to reduce labor intensity.
Low-voltage operation, safe and reliable.
Easy to hold and comfortable to use without vibration.
3. Operating Points
Turn on the power switch, lift the front end of the saw, and align it with the middle of the pig carcass spine to start the operation. After the saw enters the carcass, the operator should hold the saw firmly, apply force evenly, and do not pause until the splitting is completed. When used for cattle carcasses, a cattle-specific band saw should be selected and operated according to the corresponding equipment instructions.
4. Precautions
The splitting saw should be placed stably at all times, and the saw blade must not be knocked against any hard objects.
Do not operate when there is no water supply.
Do not deviate left or right when splitting.

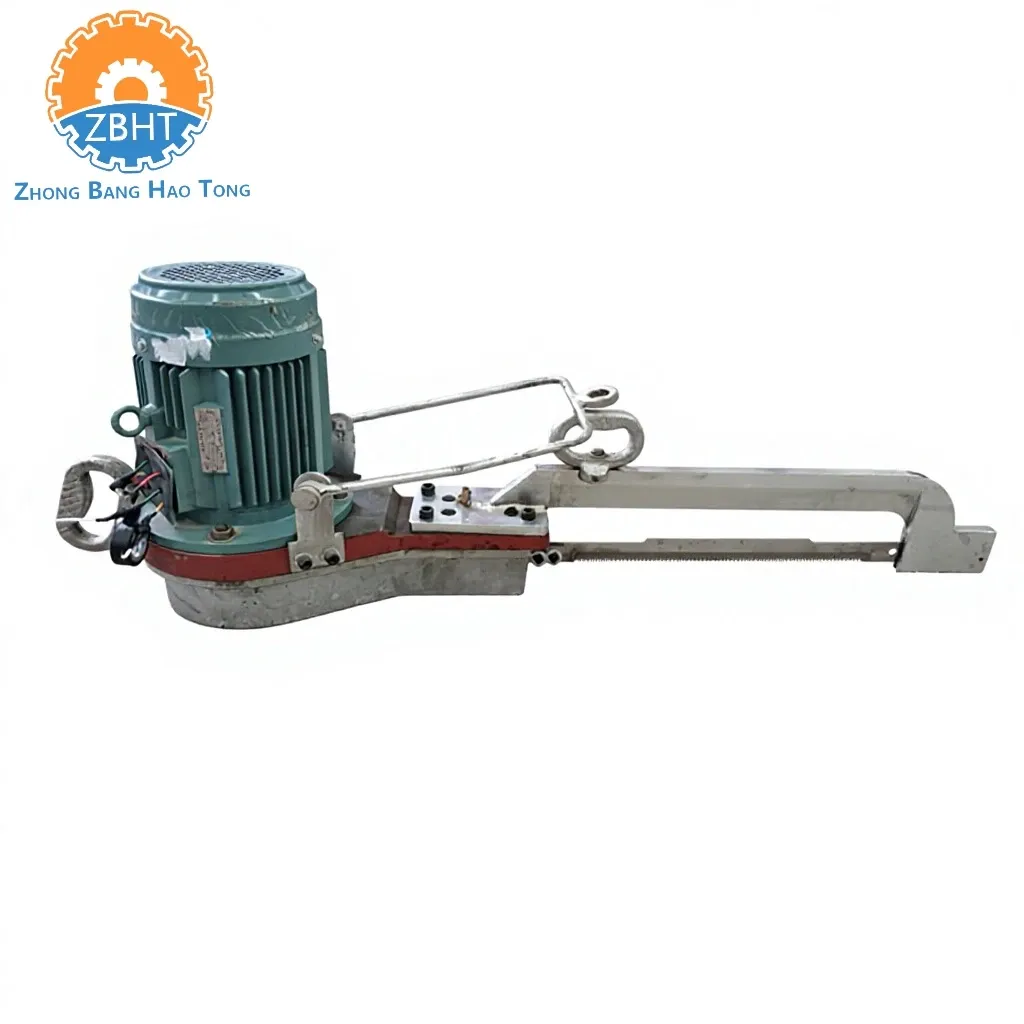

Reciprocating Splitting Saw (for pigs)
1. Equipment Usage
The reciprocating splitting saw is a device that uses a balance mechanism and is held manually by the operator to split the carcass along the center of the pig's spine, for splitting pig carcasses.
2. Main Structure and Features
The reciprocating half-saw is composed of a handle, motor, eccentric wheel, connecting rod, saw blade and saw frame. Its features are: lightweight and agile, easy to operate. When using it, a balance device must be equipped.
3. Operating Points
Turn on the power switch of the half-saw, hold the saw with both hands and position it at the center of the pig's spine for the half-slicing operation.
