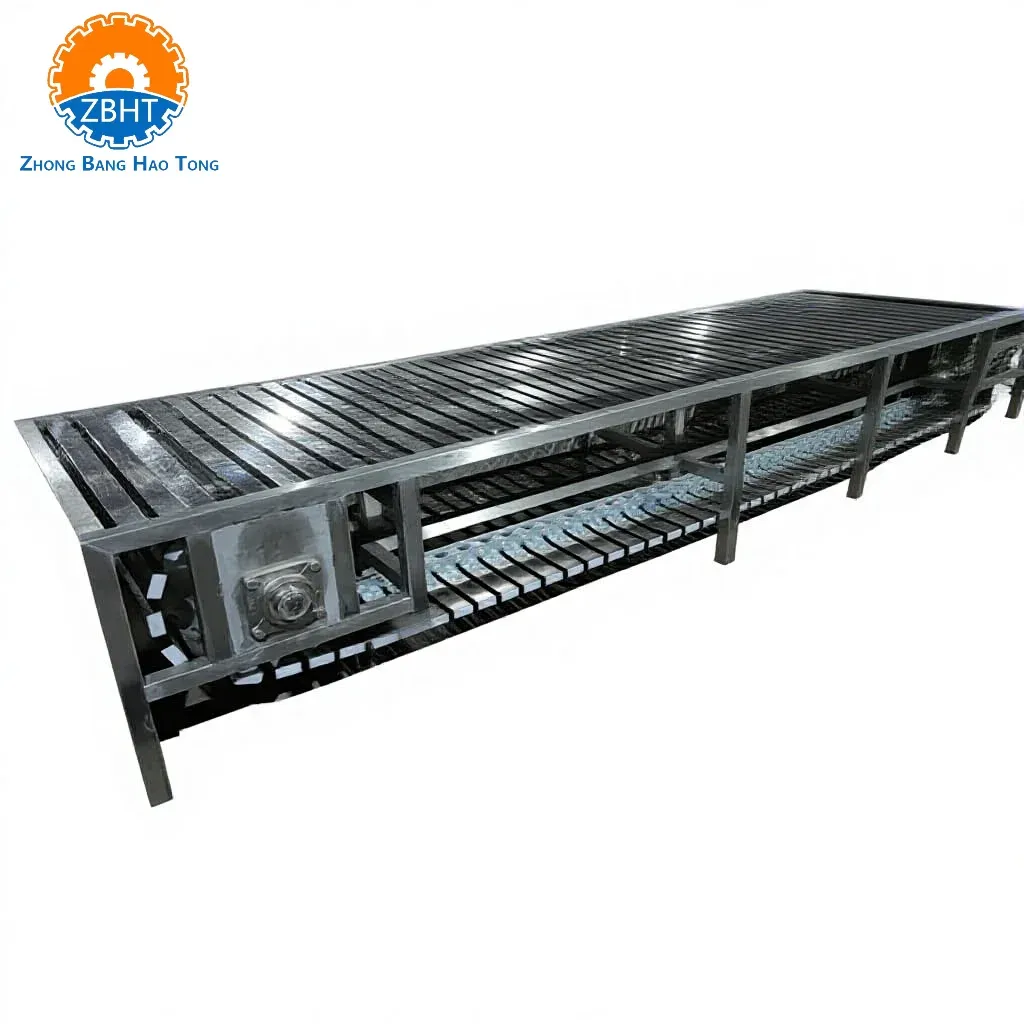

Product Overview
The Horizontal Bloodletting Conveyor is a critical piece of pig slaughterhouse equipment designed for efficient and hygienic bleeding operations in modern pig slaughter lines. This advanced pig abattoir equipment is specifically engineered to receive stunned pigs and transport them through the sticking station, enabling rapid and sanitary blood collection.
As a core component of any pig slaughter line, the Horizontal Bloodletting Conveyor is developed by Qingdao ZBHT Machinery Co., Ltd. on the basis of absorbing advanced international technologies. It represents state-of-the-art pig slaughterhouse equipment suitable for large and mediumsized slaughterhouses, delivering exceptional efficiency and hygiene standards.
How the Horizontal Bloodletting Conveyor Works
In a typical pig slaughter line, after the pigs are anesthetized using a stunning machine, they slide onto the horizontal flat conveyor trough runner of the pig abattoir equipment. The pigs are then pricked and bled after 12 minutes of conveying. During this process, approximately 90% of the blood flows into the bloodletting groove, making this pig slaughterhouse equipment highly effective for blood collection and utilization.
The Horizontal Bloodletting Conveyor serves a dual purpose in the pig slaughter line: it transports pig carcasses from the stunning machine through the bleeding process, and simultaneously collects all the blood for further processing. The collected blood is transported through pipelines to the blood collection room, ensuring a clean and efficient operation.
Technical Specifications
Our pig abattoir equipment features the following technical specifications:
Work surface: Manufactured from stainless steel square tubes with four heightadjustable legs
Frame: Constructed from □50×50×3 stainless steel square tubes
Conveyor panel: Made from □60×30×3 stainless steel square tubes
Conveyor chains: Two parallel galvanized steel chains equipped with fully enclosed stainless steel profiles
Drive unit: 1 set
Tensioning device: 1 set
Sprockets: 4 pieces with shafts and bearings
Connecting chains: Two galvanized chains
Hooking station: Gear motor driven, with stainless steel motor cover
Blood collection trough: Stainless steel construction
Overall dimensions: 5000×1550×800mm (L×W×H)
Installed power: 1.5kW
Key Features of Our Pig Slaughterhouse Equipment
1. Superior Stainless Steel Construction
Our Horizontal Bloodletting Conveyor is manufactured entirely from stainless steel, offering excellent resistance to acid, alkali, and corrosion. This ensures long service life and maintains the highest hygiene standards required in pig slaughter lines.
2. Hygienic Blood Collection System
The pig abattoir equipment is equipped with dedicated blood and excrement collection troughs, preventing blood contamination and ensuring the purity of collected blood. This feature is essential for slaughterhouses that process blood for further utilization.
3. Optimal Bleeding Efficiency
Within just 4060 seconds on the conveyor, the majority of blood is drained from the pig carcass. This rapid bleeding process reduces the stress response in pigs and aligns with animal welfare standards. The design minimizes contamination of the blood by carcass waste that typically occurs during hanging bleed methods.
4. Seamless Integration with Stunning Equipment
Our pig slaughterhouse equipment forms a perfect combination when working with ThreePoint Electric Stunning Machines. The Horizontal Bloodletting Conveyor is designed to receive stunned pigs directly from the stunning equipment, creating a smooth and continuous pig slaughter line workflow.
5. Reliable Mechanical Transmission
The conveying process is entirely controlled by a mechanical and chain drive system, ensuring stable operation, long service life, and continuous highefficiency production. The equipment features simple operation with few wearing parts, reducing maintenance requirements and downtime.
6. Blood and Urine Separation Design
The pig abattoir equipment incorporates a unique design with blood and urine conduits. This feature not only ensures meat quality by preventing contamination but also saves significant human resources in the slaughterhouse.
Advantages of Horizontal Bleeding in Pig Slaughter Lines
Compared to vertical bleeding methods where pigs are hung by their hind legs for approximately 5 minutes, horizontal bleeding offers several distinct advantages for pig slaughterhouse operations:
Faster processing: Approximately 90% of blood is drained in about 3 minute
Better blood collection: Blood is collected directly in the trough without contamination from carcass waste
Improved animal welfare: Pigs are processed while lying flat, reducing stress
Higher throughput: Enables continuous processing in largescale pig slaughter lines
Quality Assurance
Qingdao ZBHT Machinery Co., Ltd. is a professional pig slaughterhouse equipment manufacturer with over 15 years of experience in designing, developing, manufacturing, and installing slaughtering and deboning equipment. Our company has obtained ISO quality management system certification, environmental management system certification, occupational health and safety management system certification, and EU CE standard certification.
Applications
This pig abattoir equipment is widely used in:
Largescale pig slaughterhouses
Mediumsized pig processing facilities
Integrated meat processing plants
Exportoriented slaughter operations requiring CE and ISO compliance
Why Choose Qingdao ZBHT Machinery?
As a leading manufacturer of pig slaughterhouse equipment, Qingdao ZBHT Machinery Co., Ltd. offers:
Original manufacturer – not a trading company
Complete slaughter lines – we have 3 slaughter lines in our factory for demonstration
Professional technical team – providing design, installation, and aftersales support
Global export experience – products exported to Russia, Mongolia, USA, Malaysia, Uzbekistan, Kazakhstan, Middle East, Africa, and more
Overseas installation support – we send engineers for overseas project guidance
Contact Us
For more information about our Horizontal Bloodletting Conveyor or other pig slaughter line equipment, pig abattoir equipment, and pig slaughterhouse equipment, please contact Qingdao ZBHT Machinery Co., Ltd.
Qingdao ZBHT Machinery Co., Ltd.
Address: Jiangsu Road No.7, Beiguan Industrial Park, Jiaozhou City, Qingdao, Shandong, China
With CE and ISO certifications, ZBHT is your trusted partner for premium pig slaughterhouse equipment.
