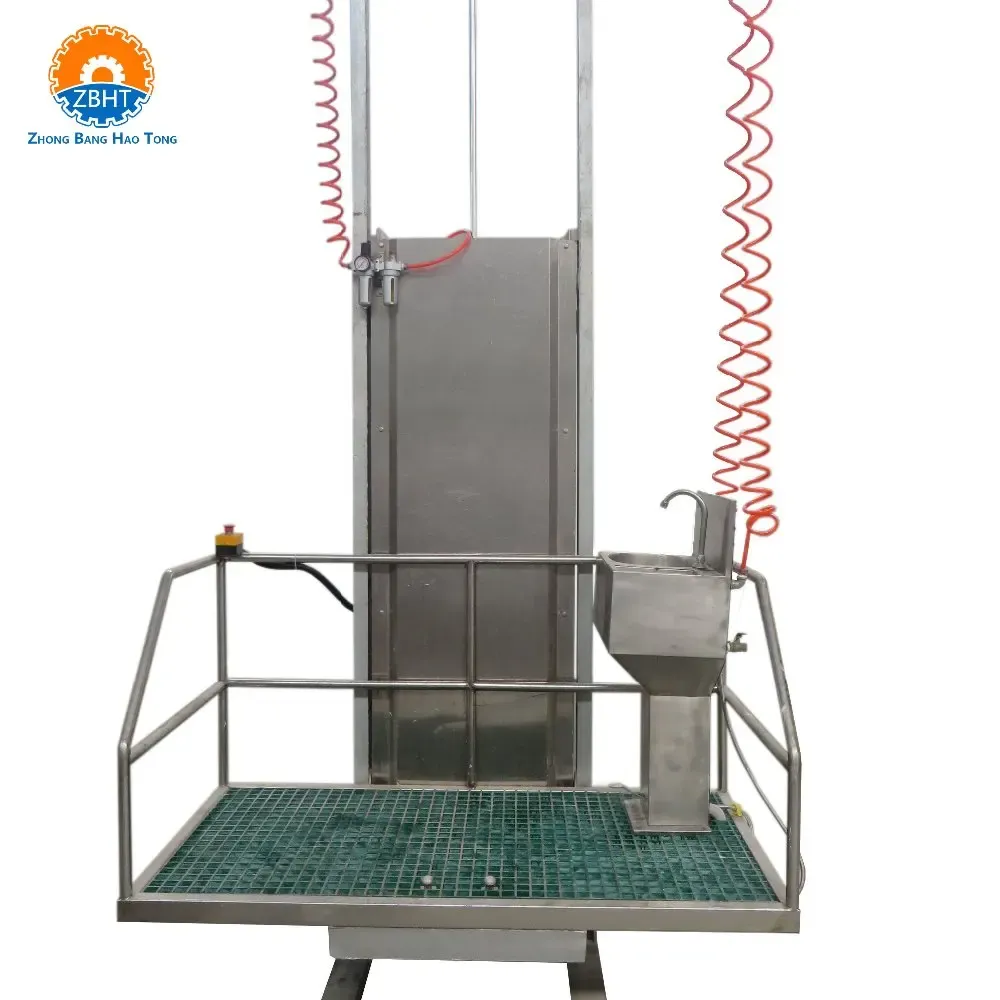

In modern slaughterhouse processing, the double-column pneumatic lifting platform is a critical piece of equipment for enhancing efficiency and ensuring safety. Specifically designed for carcass handling stations for cattle and pigs, it is driven by compressed air to achieve smooth raising and lowering of the platform.
As an integral part of pig slaughter equipment and cattle slaughter equipment, this device is primarily used for pre-stripping, splitting, evisceration, and carcass trimming. Its key advantage lies in the dual-column guide structure, ensuring symmetrical load-bearing and stable platform movement, effectively reducing operator fatigue from prolonged bending or reaching.
When selecting slaughterhouse equipment, the double-column lifting platform stands out for its versatility. Often used in conjunction with indexing conveyors, operators can easily control the platform height anywhere from 400mm to 2000mm via a pneumatic foot valve, flexibly adapting to various carcass sizes for different tasks. The platform is typically constructed from stainless steel or hot-dip galvanized materials, featuring guardrails, a plastic grid deck, and optional accessories like hand wash basins and knife sterilizers to meet hygiene and safety standards
Why Does a Slaughter Line Need a Double-column Lifting Platform?
In cattle slaughter lines, workstation heights vary significantly—cattle are large, and different processes require different operating heights. The value of the double-column pneumatic lifting platform lies in solving this problem: operators simply step on a pneumatic foot valve, and the platform smoothly rises to the ideal height or lowers for the next task.
This equipment is applied in critical workstations such as hide pulling, splitting, white offal removal, and inspection. The dual-column structure offers greater stability than single-column designs, preventing the platform from tilting and ensuring operator safety when working at height. Additionally, the platform is typically made of all-stainless steel, equipped with apron washers, hand basins, and knife sterilizers, forming a complete workstation hygiene solution.
Technical Parameters & Selection Considerations
Different manufacturers and models of the double-column pneumatic lifting platform vary in specifications. Key indicators to consider during selection include:
Lifting Height: Common ranges are 400mm to 2000mm, with some models starting at 1200mm. Selection should be based on actual workstation height requirements.
Lifting Capacity: Common ratings are 200kg to 250kg, sufficient to support operators and necessary tools or materials.
Platform Size: Common dimensions include 2000×1060mm, 1700×800mm, and 1500×1000mm, customizable based on space and operational needs.
Material & Configuration: Given the humid environment and high hygiene standards of slaughterhouses, stainless steel or hot-dip galvanized materials are recommended. Confirm whether guardrails, plastic grid decks, drainage columns, hand and knife sterilizers, and apron washers are included.
Summary
The double-column pneumatic lifting platform (Double-column pneumatic lifting platform) is an indispensable auxiliary equipment in the slaughterhouse. It effectively enhances production efficiency and operational safety through flexible height adjustment, a stable double-column structure, and complete hygiene facilities.
