In modern slaughter processing, the Pig frame splitting saw is one of the core pieces of equipment for accurately splitting pig carcasses along the spine. As a critical pig slaughter equipment, it directly affects the efficiency of the slaughter line and the quality of meat products.
Equipment Application
The frame splitting saw is mainly used to split pig carcasses into two halves along the spine. It is an indispensable piece of slaughterhouse equipment in the slaughtering room. Its fully automatic design significantly reduces manual labor intensity and improves production consistency.
Main Structure and Features

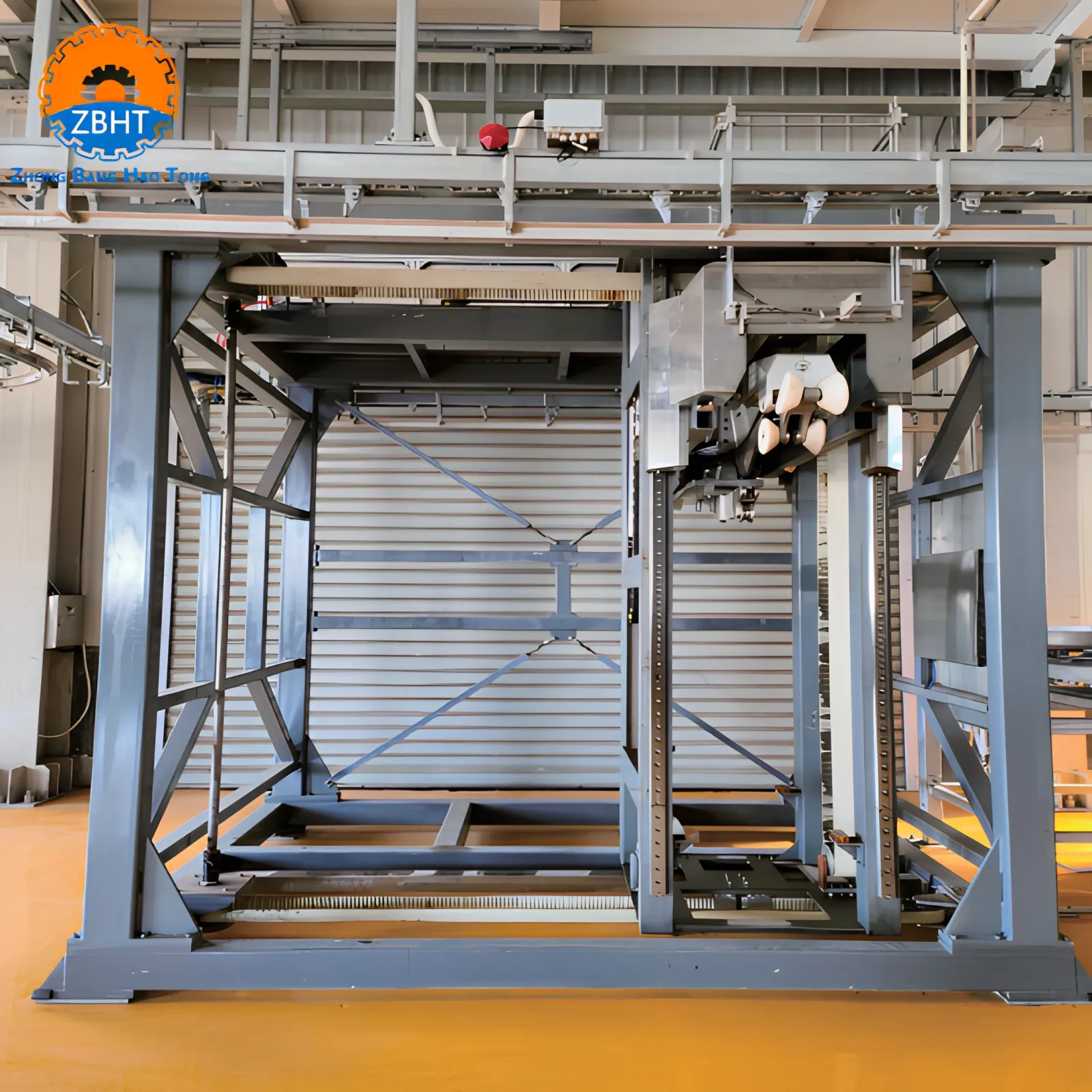

This equipment is a high-end type of Slaughtering Machinery, consisting of a fixed frame, traveling carriage, blade feeding device, splitting blade device, internal support, and external support. Its key features include:
1.High-precision guide system: Automatic lifting and vertical feeding utilize linear guides to ensure smooth and precise splitting—an important hallmark of a high-quality Pig frame splitting saw.
2.Dual-blade alternate cutting technology: Two splitting blades work alternately at the same time, producing no bone debris or meat dust, which not only improves splitting efficiency but also ensures a clean meat surface—reflecting advanced pig slaughter equipment design.
3.Intelligent control system: Equipped with a microcomputer system that automatically detects carcass size and position, enabling precise positioning and automatic adjustments—showcasing the smart capabilities of modern Slaughtering Machinery.
4.Quick reset mechanism: Uses the rapid extension and retraction of cylinders to reset quickly after splitting, shortening cycle times and improving the overall throughput of the slaughterhouse equipment line.
5.Hygiene and safety assurance: Features automatic spray cleaning and blade disinfection to effectively prevent cross-contamination, meeting food safety standards—a must-have function for responsible slaughterhouse equipment.
Operation Points
When the suspended pig carcass on the conveyor reaches the preset position, a photoelectric signal triggers the start-up procedure. The blade feeding device extends into the fork-hook area, the positioning unit supports the spine, and the two blades split from top to bottom simultaneously while the longitudinal carriage moves synchronously with the carcass line, completing the entire splitting process. After splitting, all parts reset quickly and wait for the next cycle. The coordination of these actions demonstrates the technical strength of a premium Pig frame splitting saw.
Precautions
This equipment has a complex structure and must be operated and maintained by specially trained personnel to ensure the long-term stable operation of the pig slaughter equipment.
The operating speed is intelligently controlled by a microcomputer. Once set, non-professionals should not adjust it arbitrarily to avoid affecting the coordination accuracy of each mechanism and reducing the overall performance of the Slaughtering Machinery.
The synchronous belt must be inspected regularly to ensure machine safety. Daily visual checks of the belt's wear condition are required to determine whether replacement is necessary—this is an important part of routine maintenance for slaughterhouse equipment.
