Goat skin peeling machine is a key piece of equipment on slaughtering production lines. Its core function is to efficiently and completely peel the whole goatskin after manual pre-peeling. Whether you process goats or sheep, a reliable dehiding machine can significantly improve slaughtering efficiency, ensure intact skin quality, and reduce labor costs.
Based on slaughtering scale and production line layout, we offer two main models: Inclined Vertical Dehiding Machine (ideal for large and medium-sized automated production lines) and Flexible Arm Dehiding Machine (suitable for small and medium-sized slaughterhouses). Below is a detailed introduction to these two machines.

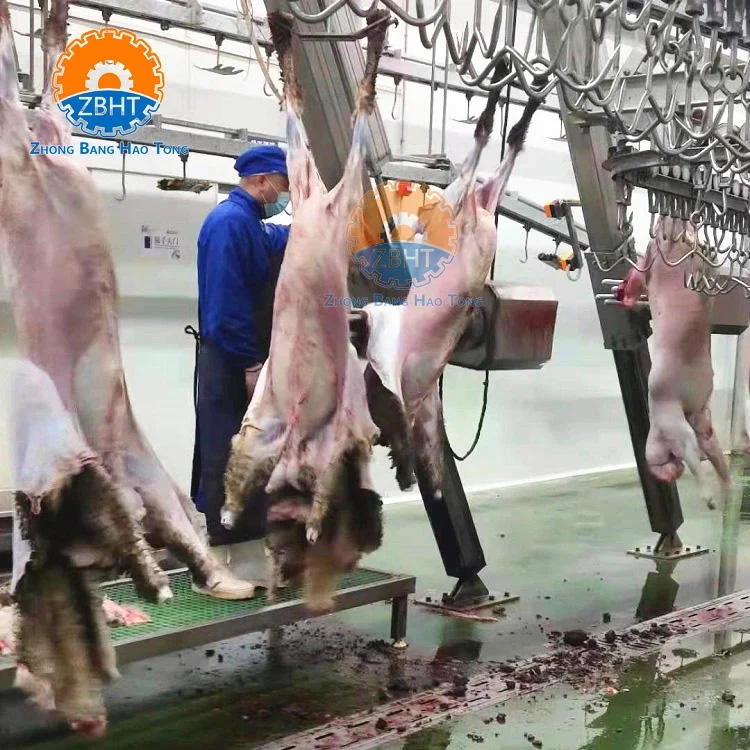

· Fixed on the ground, installed at a 45° angle to the ground
· All-stainless steel structure with stainless steel dehiding rollers
· Motor power: 2.2 kW, variable frequency speed control for the motor reducer
· Equipped with 1 set of PLC control system
· Stainless steel protective cover for the transmission system
· Operation mode: Activated by foot switch, cylinder moves downward, and the roller reverses to release the skin
The inclined design ensures smooth peeling during rotation and descent without interrupting the slaughter line
Excellent synchronization with the assembly line, effectively preventing uneven peeling
Particularly suitable for large and medium-sized slaughtering lines with high daily output
Often used as part of automated production lines; recommended for automated lines
Large and medium-sized slaughterhouses with a daily slaughter capacity of 200–500+ heads, fully automatic or semi-automatic production lines.

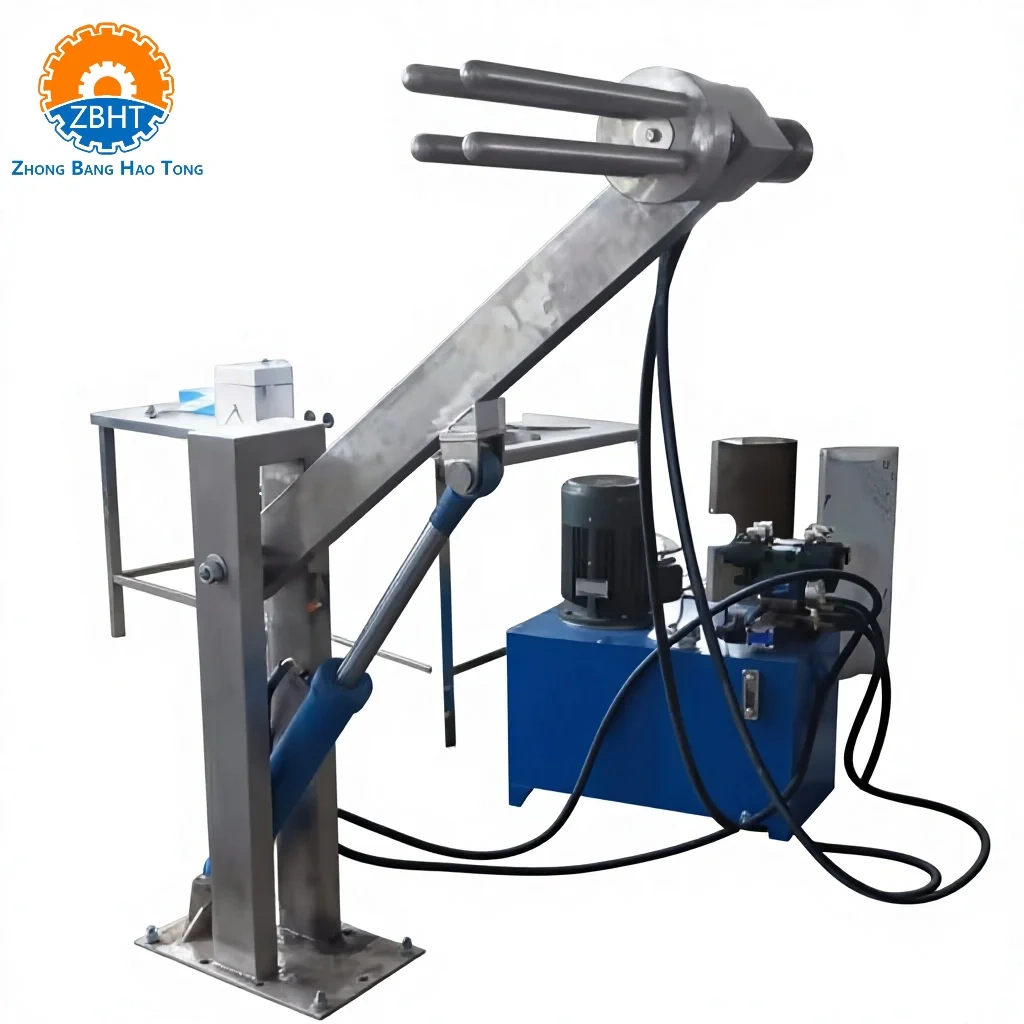

Hot-dip galvanized frame, stainless steel dehiding roller
Equipped with a hydraulic system, motor power: 2.2 kW
More convenient operation and lighter weight compared with traditional technologies
Collaborative operation of gear motor and air compression system
Low running noise and more stable working status
Relatively simple structure, completes dehiding through the up-and-down swing of the arm
Low operation threshold; highly reliable with manual assistance
Suitable for small and medium-sized slaughterhouses with low daily output
Small and medium-sized slaughterhouses with a daily slaughter capacity of 50–200 heads, family workshops, or as backup equipment.
After hanging pre-peeling or balanced pre-peeling of goat carcasses, clamp the goatskin with a skin-clamping device. The whole goatskin can be peeled from the front legs to the hind legs (or in reverse) according to the slaughtering process.
Peeled goatskins can be conveyed to the goatskin storage room via a goatskin conveyor or goatskin pneumatic conveying system.
Choose the Inclined Vertical Dehiding Machine if you have an automated slaughter line and pursue continuous operation, high efficiency and intact skin quality.
Choose the Flexible Arm Dehiding Machine if you are a small and medium-sized slaughterhouse with a limited budget or a simple production line.
With 17 years of experience in manufacturing slaughtering equipment, ZBHT provides factory-direct prices, video demonstrations and complete technical data for both models. Welcome to contact us for more information.
